GOM SCAN 1

A small 3D scanner

for high standards

A small scanner for precise meshes and big ideas

Compact, mobile and versatile

GOM Scan 1 has arrived to open up new possibilities. Industry standards such as GOM fringe projection technology and blue light technology form the basis for detailed and accurate 3D meshes. While the integrated GOM Inspect software helps you apply the mesh to any project you want: 3D printing, reverse engineering or part inspection. So take the plunge and start something big.

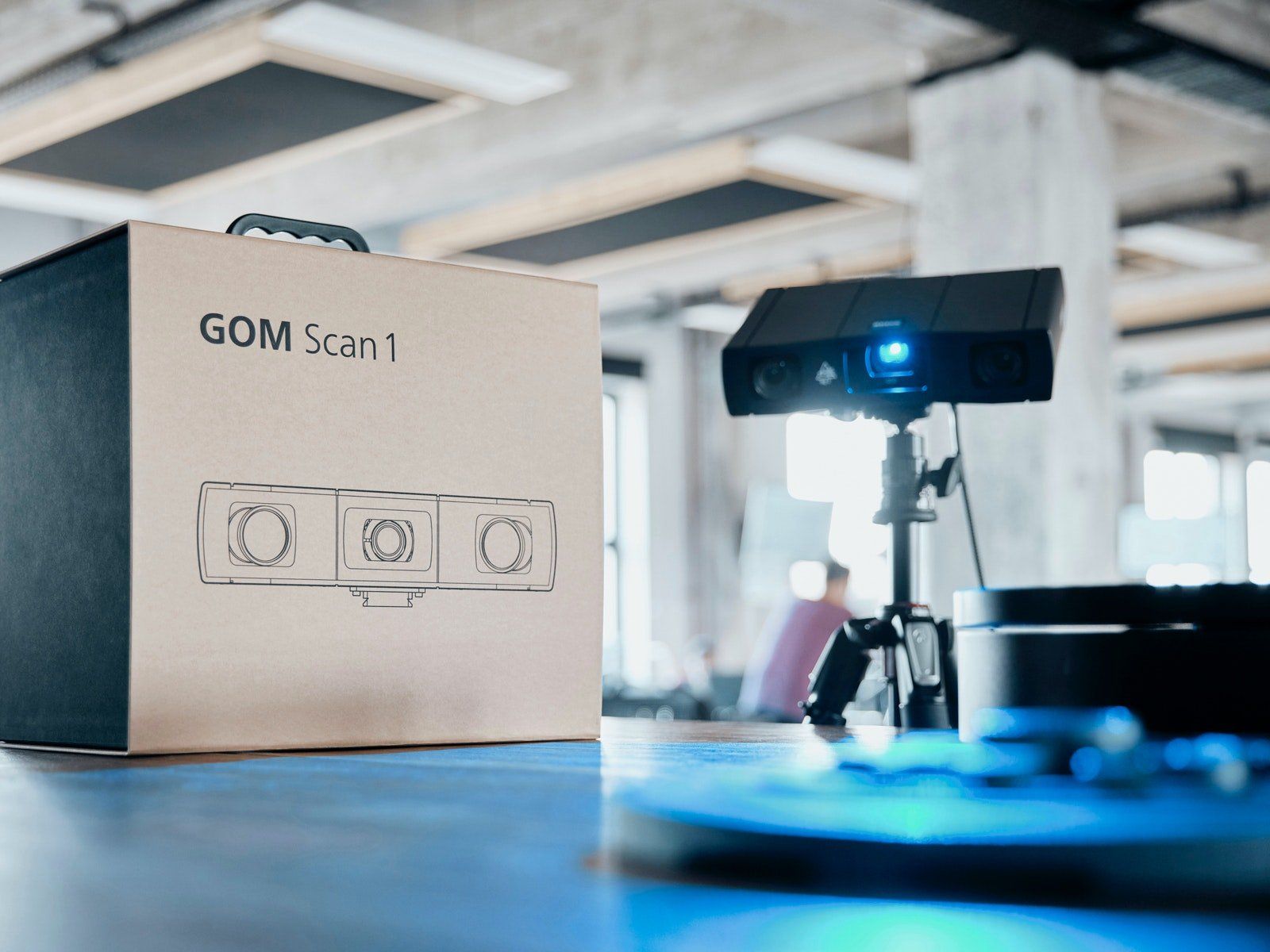

A powerful 3D scanner

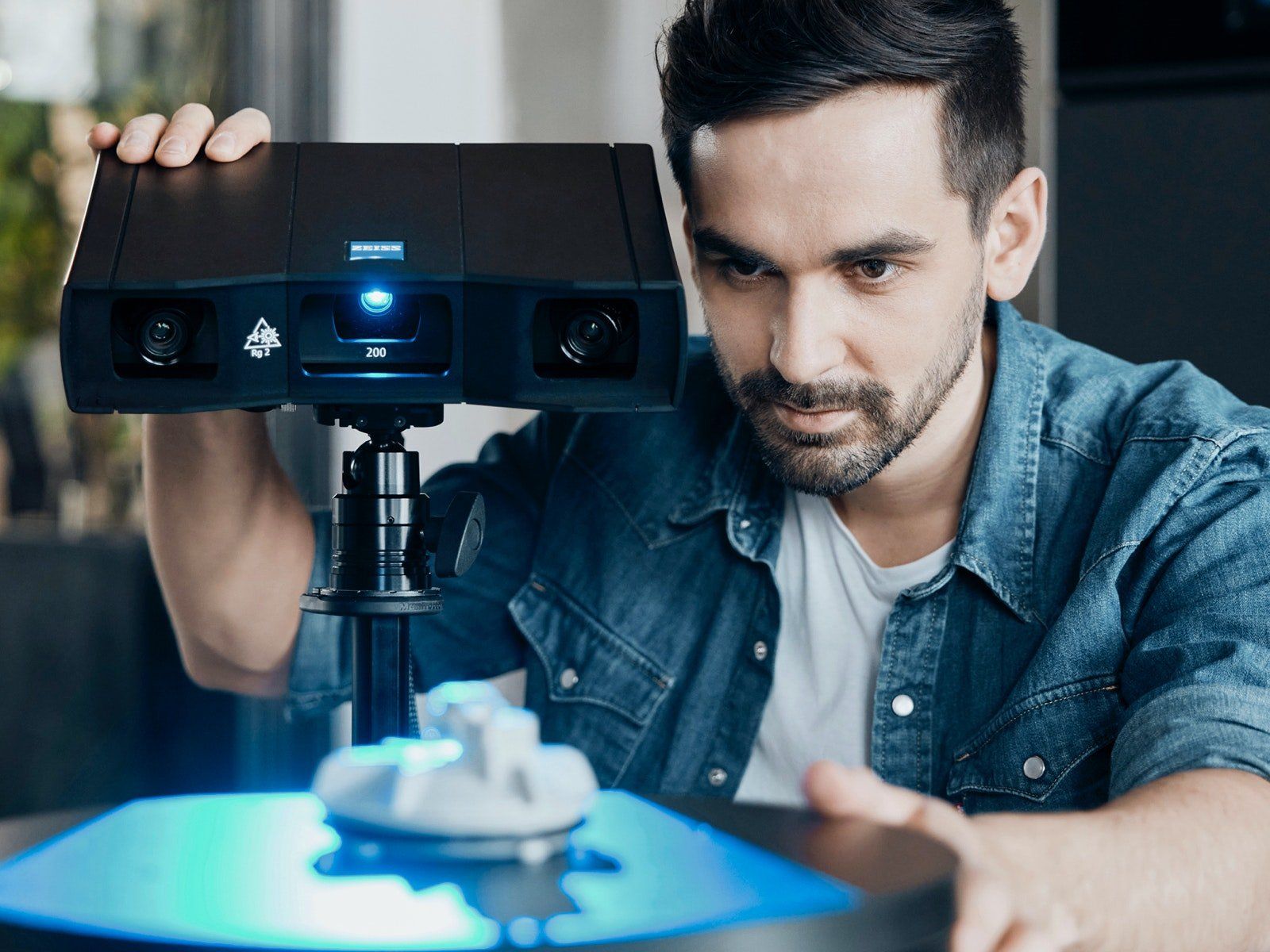

The GOM Scan 1 features a compact form and robust design packed with advanced technologies. From GOM's blue light technology to the stereoscopic camera principle, this sensor is built to deliver highly accurate 3D data.

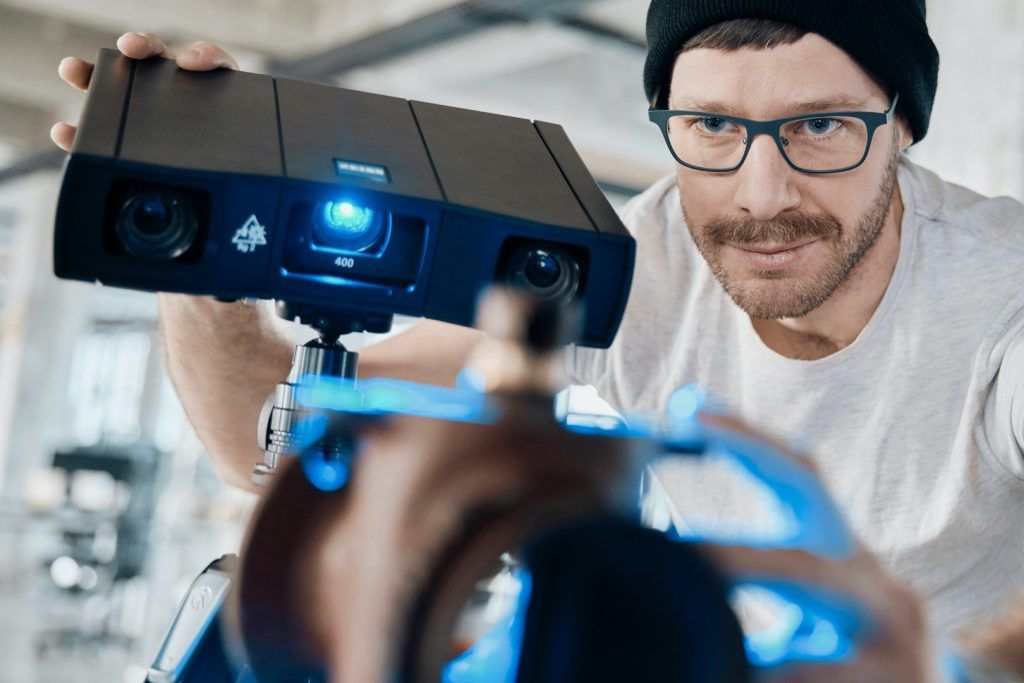

Small, mobile and

very easy to use

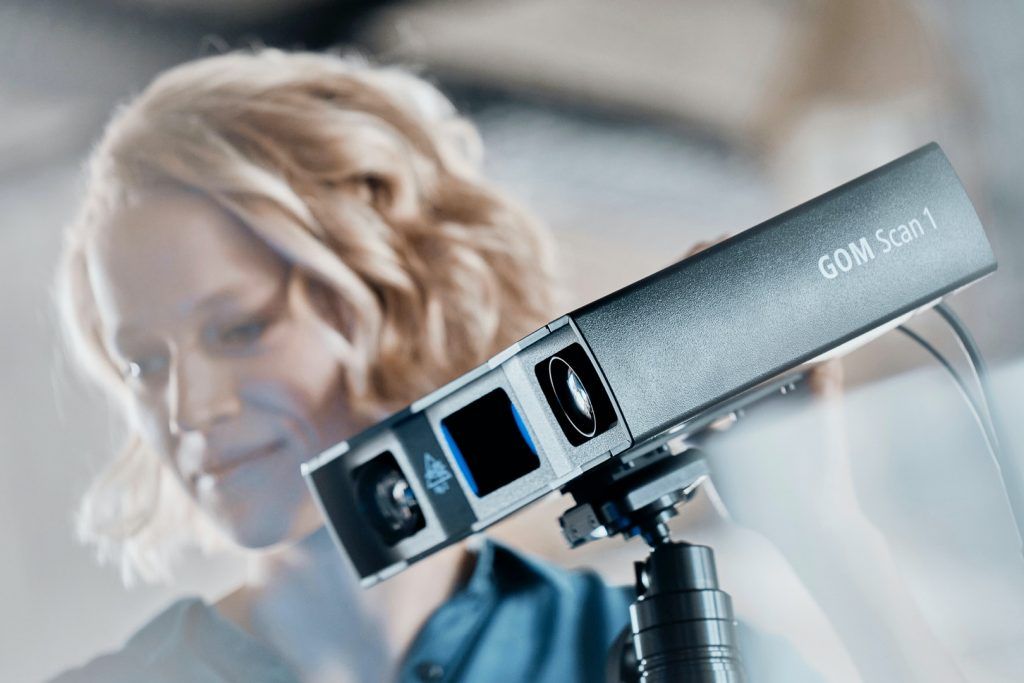

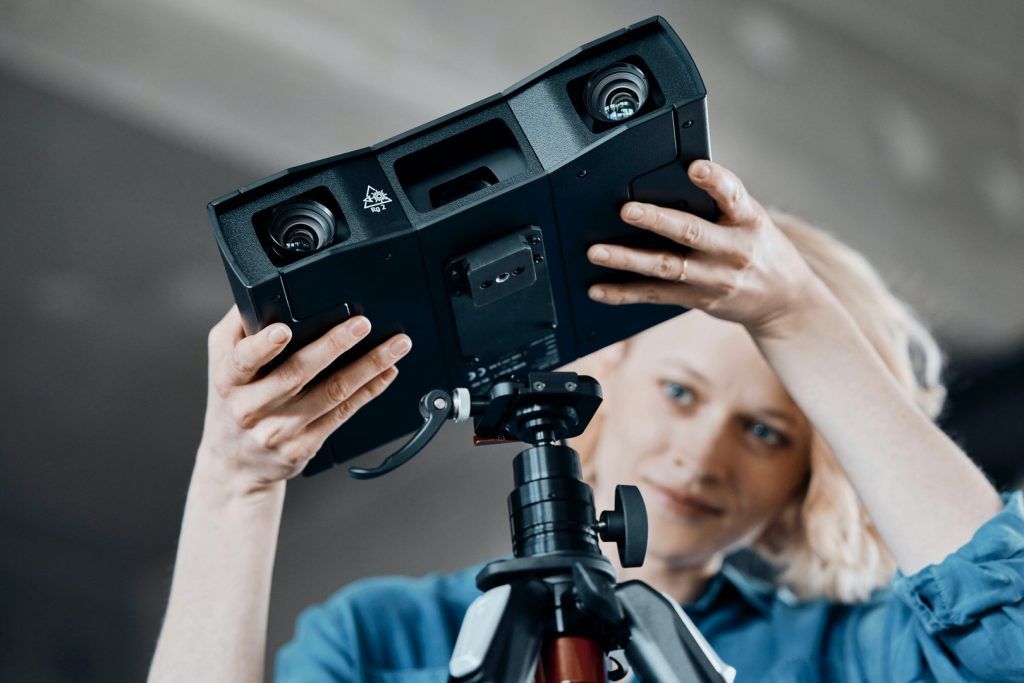

This lightweight solution allows you to capture 3D data intuitively. Easy to use, the GOM Scan 1 is the specialist for simple and fast measurements of small and medium-sized parts, even in confined spaces.

fast and accurate

GOM Scan 1 with GOM Inspect pre-installed takes mesh to another level. You can count on high-quality data, generate accurate meshes, and get your 3D data quickly and easily.

A software with assistant

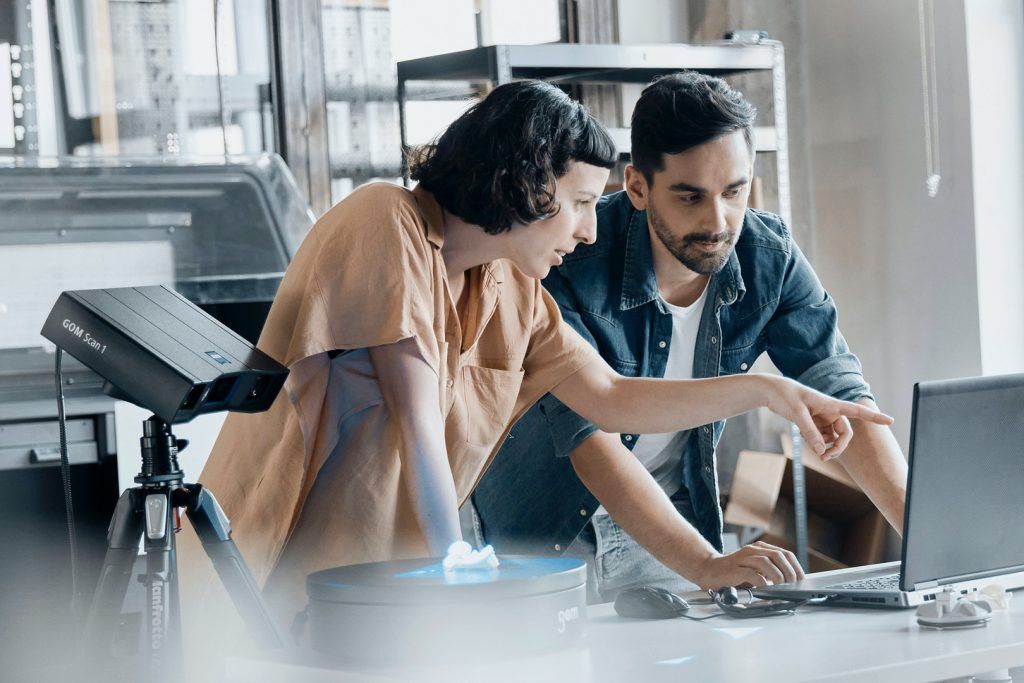

GOM Scan 1 works with GOM Inspect, the proven standard in 3D metrology. Powerful mesh editing features make it an ideal tool for those who want to use it for 3D printing and reverse engineering. What's more, you can effortlessly carry out simple and complex tasks throughout your inspection process. Software that simplifies and speeds up your workflow.

Characteristics

A self-monitoring system for real-life problems

Thanks to the stereoscopic camera principle, the sensor recognizes changes in ambient conditions during operation and can compensate for these changes. To ensure the quality of the measurement data, the sensor software continuously monitors the status of the sensor.

Accuracy in all lighting conditions: GOM Blue Light Technology

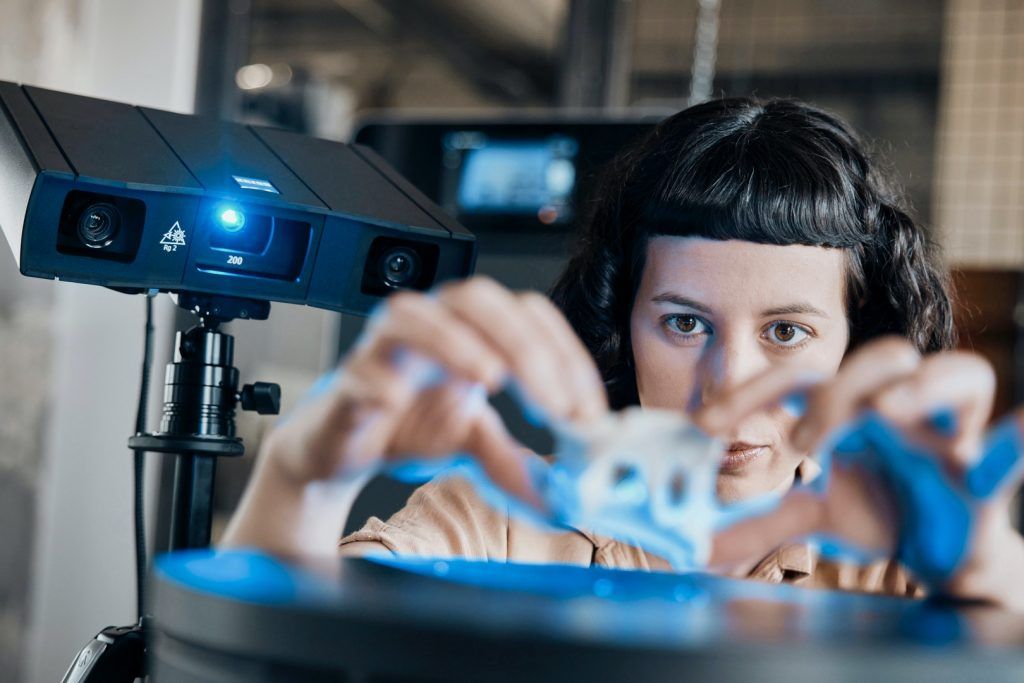

The projection unit of the new GOM Scan 1 is based on blue light technology. The sensor works with narrow-band blue light, so interfering ambient light can be filtered out during image acquisition. Thanks to its powerful light source, short measurement times can be achieved.

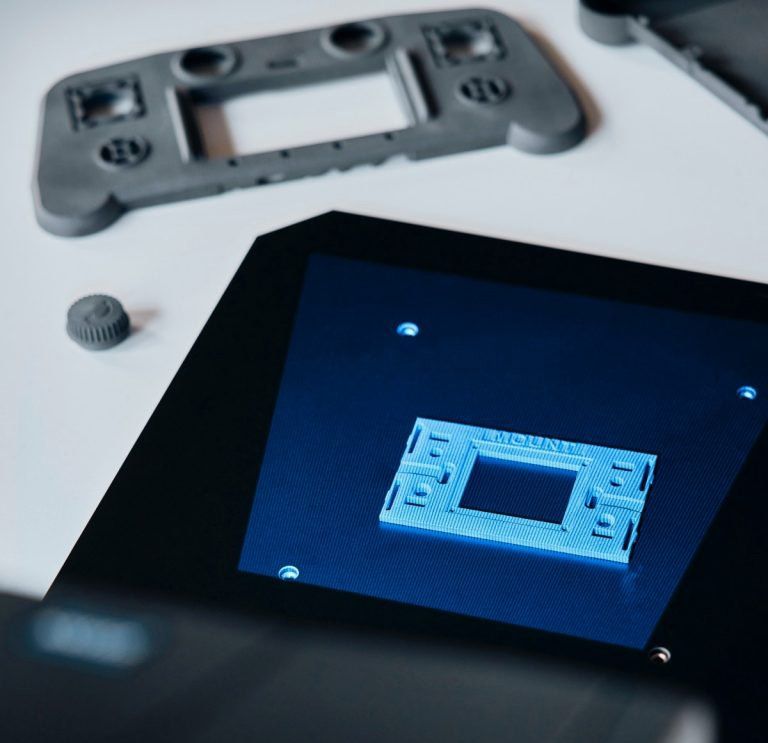

Get ready to print with smart mesh editing

GOM Inspect allows you to smooth, thin and refine polygonal meshes, fill holes or extract lines from curvatures, achieving very precise meshes that can be saved in many conventional formats. The best: our smart polygonization. Create a mesh with a maximum level of detail while maintaining an easy-to-manage mesh size.

Choose your measurement volume

Each application has different requirements. GOM Scan 1 is available in three versions with the measuring volumes: MV 100, MV 200 and MV 400. With all three sensors you can rely on high-precision measurements for small and medium-sized objects.

Get to your goal fast

with fringe projection

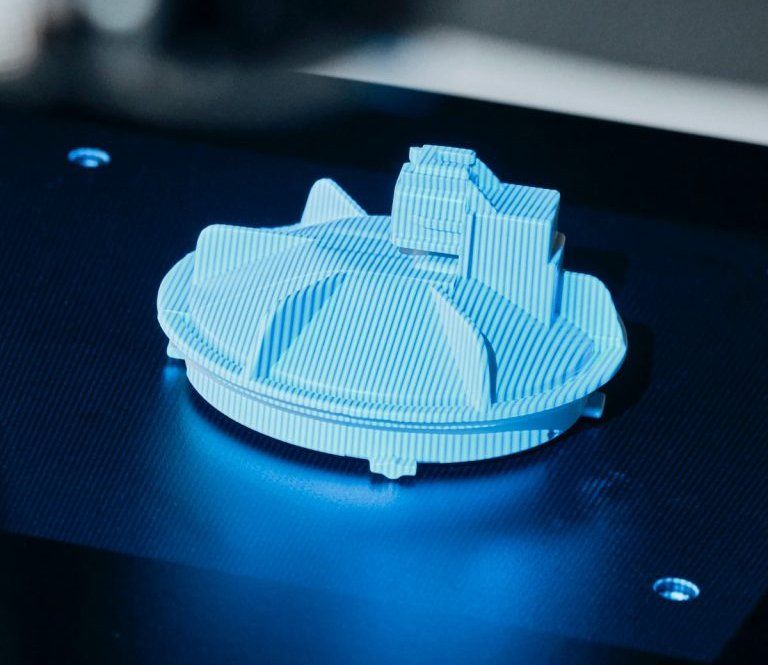

GOM Scan 1 is a 3D fringe projection optical scanner. It captures the entire component surface with blue fringe projection and provides detailed resolution in a short time.

Measure and inspect your products

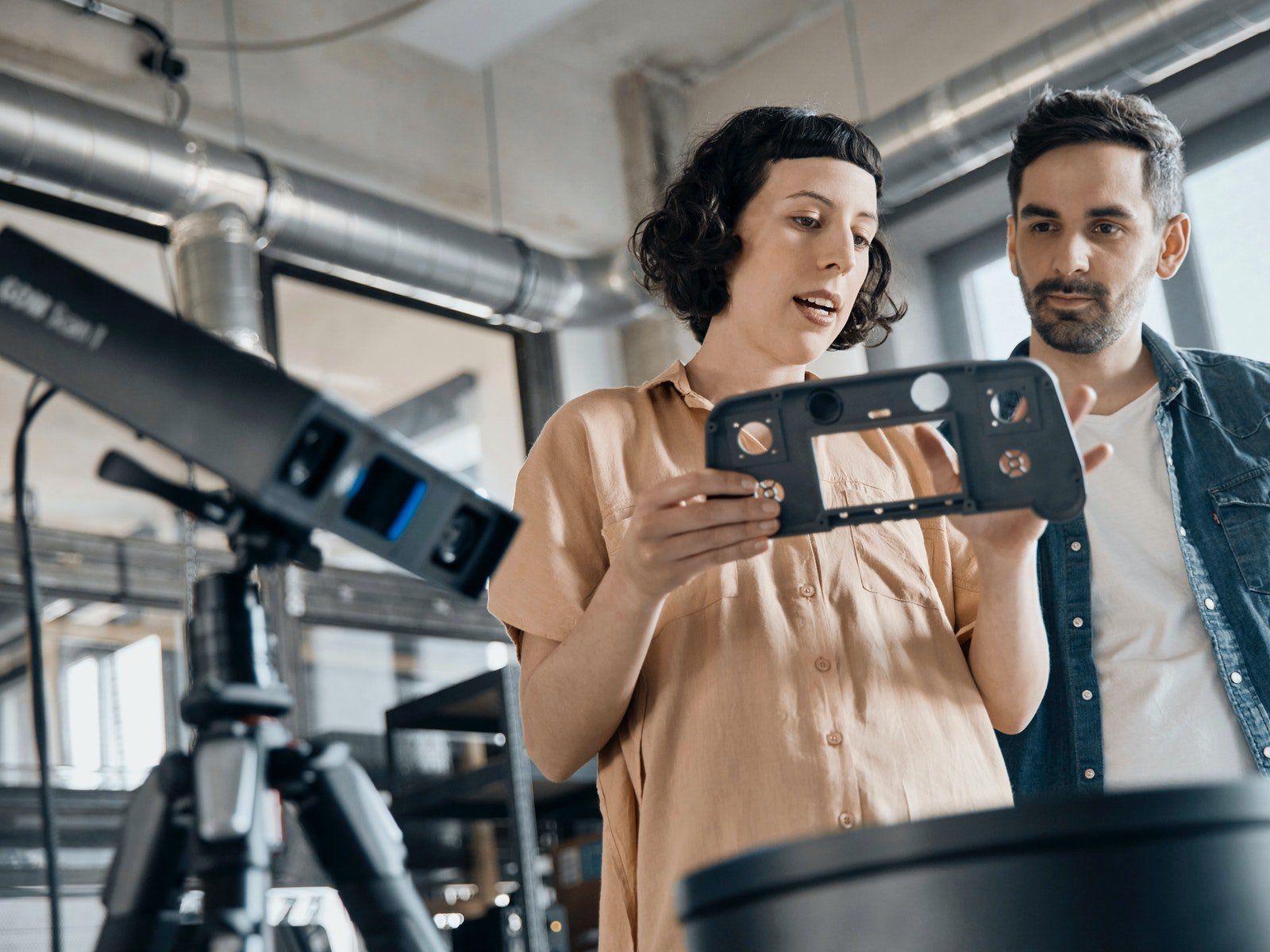

GOM Scan 1 with GOM Inspect is a system that supports you throughout your workflow. It helps you get accurate and complete measurement results and makes part inspection effortless. Import and align CAD and mesh files, create inspection section and surface comparisons, and generate reports—all easily and efficiently.

Applications

Capture and shape your ideas

The new GOM Scan 1 with GOM Inspect supports tasks such as 3D printing, 3D models of a part, and reverse engineering. Capture high-quality data in no time, while powerful mesh editing features make it easy to replace parts, produce accurate 3D models, or develop new products. Whatever your idea, GOM Scan 1 meets professional and industry standards to bring it to life.

Applications of the new GOM Scan 1

• 3D printing• Reverse engineering and manufacturing• Virtual presentation or 3D models• Research and training• Art and heritage• Design• Healthcare

Accessories

Tools to help you

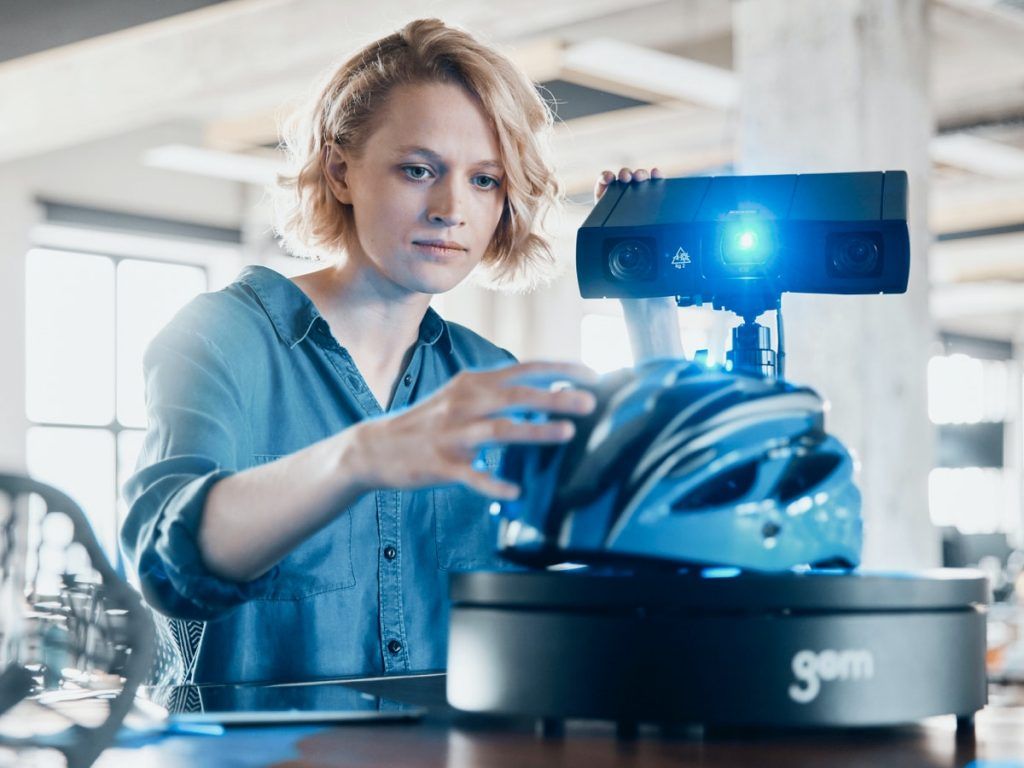

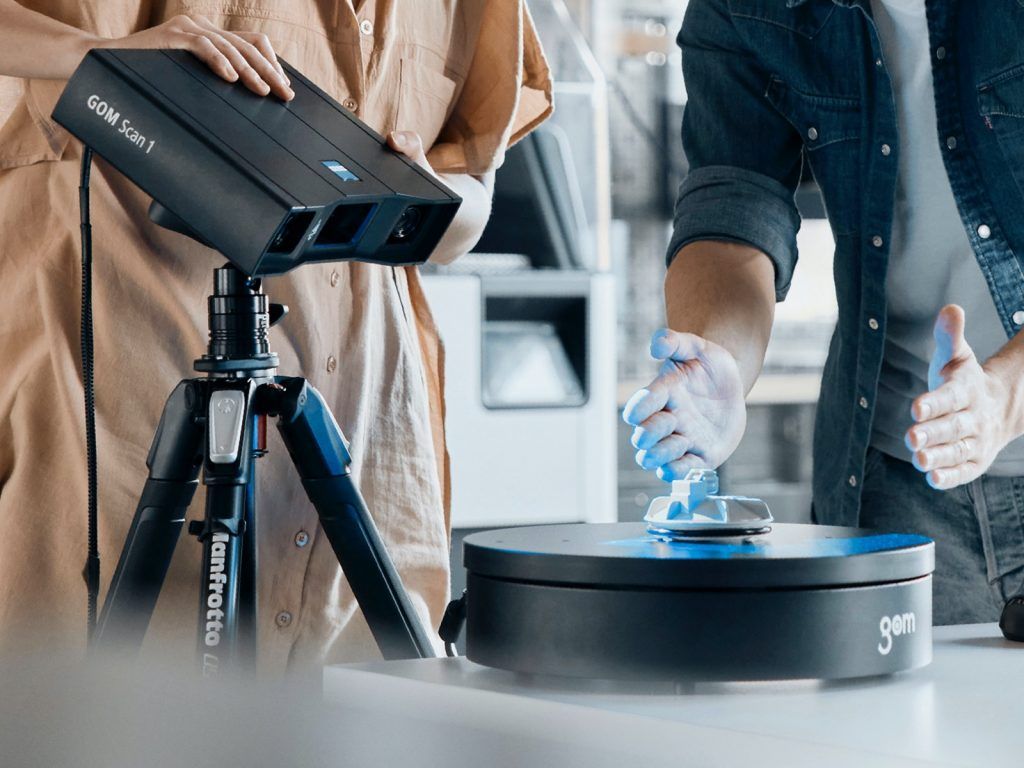

GOM Scan 1 comes with additional useful accessories to help you with your daily workflow. GOM ROT 350 is an automated rotation table that facilitates the scanning process. Use the desk stand or tripod to mount the scanner. Store everything in the travel case and take it with you wherever it's useful to get the job done.

Technical data

GOM Scan 1 (100)
points per scan	6 millions
Distance between points	0.037 mm
Measurement area	100 x 65 mm²
working distance	400 mm
Light source	LED
Weight	approx. 2.5 kg
Dimensions	290 x 215 x 80 mm³
Cable length	5 m
Connection	USB 3
Operating system	Windows 10
Software	GOM Inspect

GOM Scan 1 (200)
points per scan	6 millions
Distance between points	0.060 mm
Measurement area	200 x 125 mm²
working distance	450 mm
Light source	LED
Weight	approx. 2.5 kg
Dimensions	290 x 215 x 80 mm³
Cable length	5 m
Connection	USB 3
Operating system	Windows 10
Software	GOM Inspect

GOM Scan 1 (400)
points per scan	6 millions
Distance between points	0.129 mm
Measurement area	400 x 250 mm²
working distance
Light source	LED
Weight	approx. 2.5 kg
Dimensions	290 x 215 x 80 mm³
Cable length	5 m
Connection	USB 3
Operating system	Windows 10
Software	GOM Inspect
