InfiniteFocus G6

Optical surface roughness measurement instrument

Fast measurements, smooth surfaces and offline measurement planning in CAD

InfiniteFocus G6 is an accurate, fast and universal optical 3D measuring instrument for tolerances in the µm and sub-µm range. Components are measured area-based and with high resolution independent of size, material, geometry, weight and surface finish.

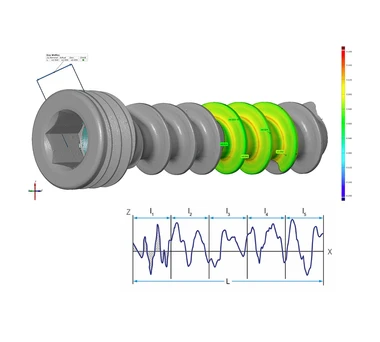

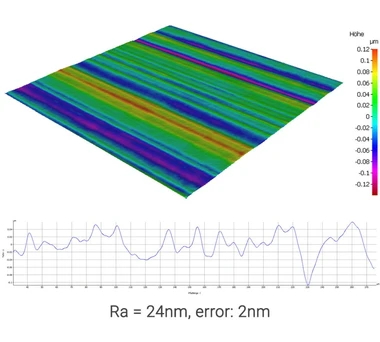

A number of proven and new features combine the functionalities of a roughness measuring system (Ra, Rq, Rz/Sa, Sq, Sz) with the characteristics of a coordinate measuring machine.

InfiniteFocus G6 is ideal for manufacturing. The robust Focus-Variation technology and the vibration-insensitive design ensure high-resolution and repeatable results, even directly next to the machine tool.

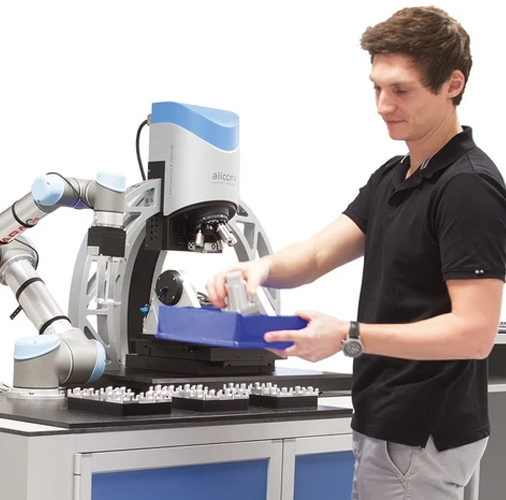

With an automation interface, InfiniteFocus G6 is also applied for fully automatic measurements also in production.
