EdgeMaster X
Multiple edges in only one measurement run
The EdgeMasterX originates from the Alicona product line for optical, automatic tool measurement in high resolution. It is a fully automated cutting edge measurement system for quality assurance of drills, millers and other round tools to be applied in production. Specifically, the EdgeMasterX enables automated multi-edge measurement. When utilized in combination with a motorized rotation unit, users benefit from the measurement of multiple tool edges, even chamfered edges, in one single measurement run. Deviations from a CAD file or reference geometry are indicated through a traffic light system. Measurements are initiated by a single button solution allowing for measurements to be performed without any further user interaction.

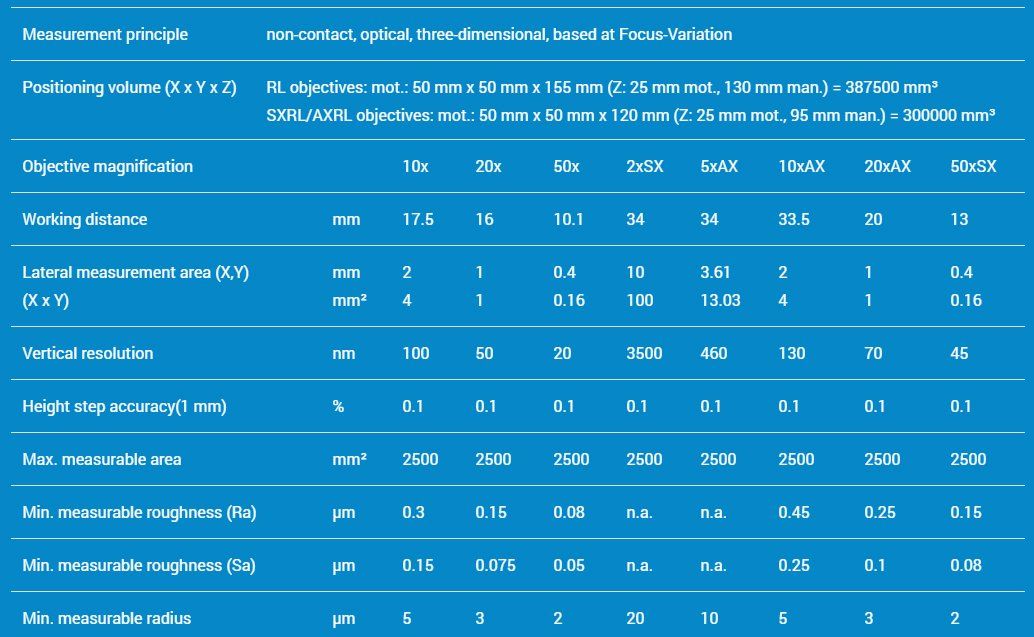

Technical specifications
