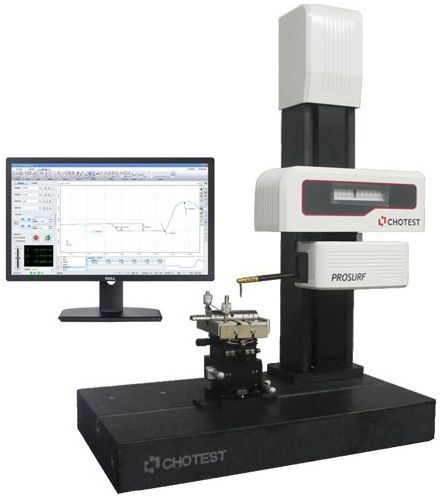

SJ5718-PR
The SJ5718-PR from Chotest Technology Inc. is a high-precision instrument designed for detailed analysis of surface profile and roughness. This 2D profilometer enables reliable and repeatable measurements of roughness, waviness, and shape parameters, facilitating quality control in demanding industrial processes.
Thanks to its highly sensitive contact measurement system, stable structure, and advanced analysis software, the SJ5718-PR delivers accurate and easy-to-interpret results. It is an ideal solution for sectors such as automotive, metalworking, mold making, and precision component manufacturing, where surface characterization is crucial.
- X-axis measuring range: 0~100 mm
- X-axis indication error: ±(0.6 0.02L)µm(L,mm)
- Z1 axis measuring range: ±30 mm
- Z1 axis resolution: 0.001 μm
- Z1 axis indication error: ±(0.6 0.05H)µm(H,mm)
- Scanning speed: 0.05~5 mm/s
Functions

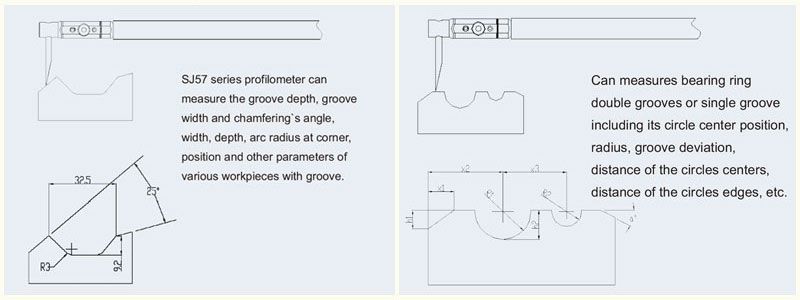

1. Surface contour evaluation: It can evaluate the radius, angle, distance, coordinates, circle, circular cross-section, and determine the points, each intersection point, coordinate axis, straight line, vertical line, circle, and circular cross-section, and analyze the straightness and roundness of the contour; More functions: (1) Establish a regression line and a circle (2) Establish points, intersection points, free points, center point, highest point, and lowest point (3) Establish the coordinate system
(4) Calculate the radius, distance, angle, coordinates, and linear deviation
(5) Compare the actual value with the nominal value
(6) The measurement program runs automatically
2. Automatic CNC mode is supported; SPC statistics and analysis are supported
3. Support for importing CAD files and annotating CAD profiles.
4. Support for importing PDF profile data.
5. You can export test data to Word, Excel, AutoCAD (optional).
6. Generate multiple report format types and support user-defined reports or customize reports (optional).
7. You can view and manage test records according to object type, manufacturer, manufacturing number, inspector, submitted institution, equipment number, inspection date or expiration date, etc.
8. You can print multiple selected test records or test certificates from the database at once.
9. User-friendly software.
10. Data backup and restoration.
Applications
Mechanical part
Metallurgical part
Car wheel
Die-cast part
Bearing
Part of the thread
Battery case
Phone case
Machined part
Gearbox pulley
Roughness scan curve
Configuration
Standard configuration:
1. Host machine 2. Calipers 3. Measuring probe 4. Jaw clamp 5. Object table 6. Measurement software 7. Desktop computer and 24” monitor 8. Handheld joystick 9. Aluminum alloy accessory case 10. User manual 11. Product certification and warranty card
| Features | |
|---|---|
| Model No. | SJ5718-PR |
| Travel Range | X 0~100mm |
| Z 0~300mm | |
| Size(L×W×H) | 600×350×890mm |
| Weight | 115Kg |
| Profile Measurement(SJ5718-P) | |
| Measuring Range | Measuring Range Z1 ±30mm |
| Resolution 0.001um | |
| Indication Error | X |
| Z1 | ±(0.6 0.05H)μm（H ,mm） |
| Standard Ball | ≤±（1.2 R/15）μm（R ,mm） |
| Angle error | ≤±1′ |
| Moving speed | X ±(0.6 0.02L)μm（L ,mm） |
| WITH | Z ~20mm/s |
| Scanning Speed | 0.05~5mm/s |
| Max Slope | Uphill 77°, downhill 88° |
| Straightness | ≤0.5μm/100mm |
| Scanning Force | 30mN |
| Roughness Measurement(SJ5718-R) | |
| Measuring Range | Z0 ±400µm(Optional:±1000μm) |
| Sensor Type - Railless | |
| Ra Range - Ra0.1μm~Ra64μm | |
| Scanning Force | 1mN |
| Resolution | Z0 - 0.001μm |
| Indication Error | ≤±（5nm+2.5%A）μm, A(Ra)μm |
| Repeatablity | ≤1nm |
| Scanning Speed | 0.05~0.5mm/s |
| Measurement Residual | ≤0.005μm |
| Roughness Parameters | R roughness: Rp, Rv, Rz, Rc, Rt, Ra, Rq, Rsk, Rku, RSm, RPc, Rdq, Rdc, Rmr, Rmax, Rpm, tp, Htp, Pc, Rda, Ry, Sm, S, Rpq, Rvq, Rmq, RzJ, Rv1max, Rp1max, Rz1max, Rmr(Rz/4), maxRa, R5z, R3z, Rh, Dq, Lq, SD Key roughness: Rcore: Rk, Rpk, Rvk, Mr1, Mr2, A1, A2 Profile: Pa, Pq, Pt, Pz, Pp, Pv, PSm, Psk, Pku, Pdq, Pdc, Pc, PPc, Pvq, Pmr, Pmq, Rad, PzJ, Pmax, StpHt, TIR, Avg, Slope, Area , Area-, Area, Profl, Edge, StpWd, Bumpht Waviness of profile: Wa, Wq, Wt, Wz, Wp, Wv, WSm, Wsk, Wku, Wdq, Wdc, Wmr, Wpc, Wc, Wh, Wmr(WZ/4) Motif: R, AR, W, AW, Rx, Wx, Wte, Nr, Ncrx, Nw, Cpm, CR, CF, CL ISO5436: Pt5436, D |
| Filter | 2RC filtering, Gaussian filtering and Zero phase filtering |
| Sampling Length | 0.008, 0.08, 0.25, 0.8, 2.5, 8.0 or 25mm Selectable |
| Evaluation Length | Auto calculation |
| Film Thickness Measurement | Measuring Range - 60μm or less |
General characteristics: 1. High precision, high stability, high repeatability: fully meets the measurement requirements of the test object.
1) The world's leading high-precision linear encoder system and high-precision inductance measurement system;
2) The high-precision grinding rail is made of good material with high wear resistance.
3) High-performance linear motor drive system

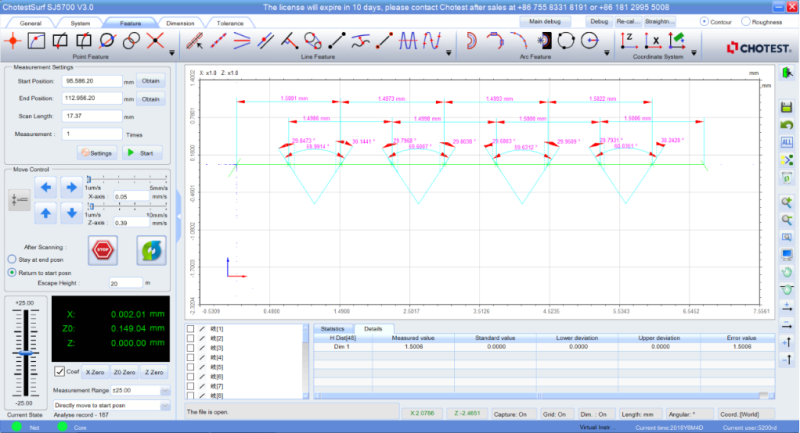

2. Intelligent Measurement Software Thanks to the user-friendly software interface, the operator can understand the basic operation of the machine.
3. Measuring Force The measuring force controlled by the voice coil motor drive system can be continuously adjusted from 10 mN to 150 mN, and the resolution of the measuring force is 0.2 mN;
4. Intelligent protection system Once the measuring probe collides with the test object/part holder, or the pulling force of the measuring probe is too great during the scanning process, the machine will stop scanning to protect the measuring probe and the measuring system.
5. Flexible Manual Control The machine is equipped with a joystick, which can be used to position the probe before measurement. The operator can control the measuring probe to move it up and down, left and right quickly without a computer.
